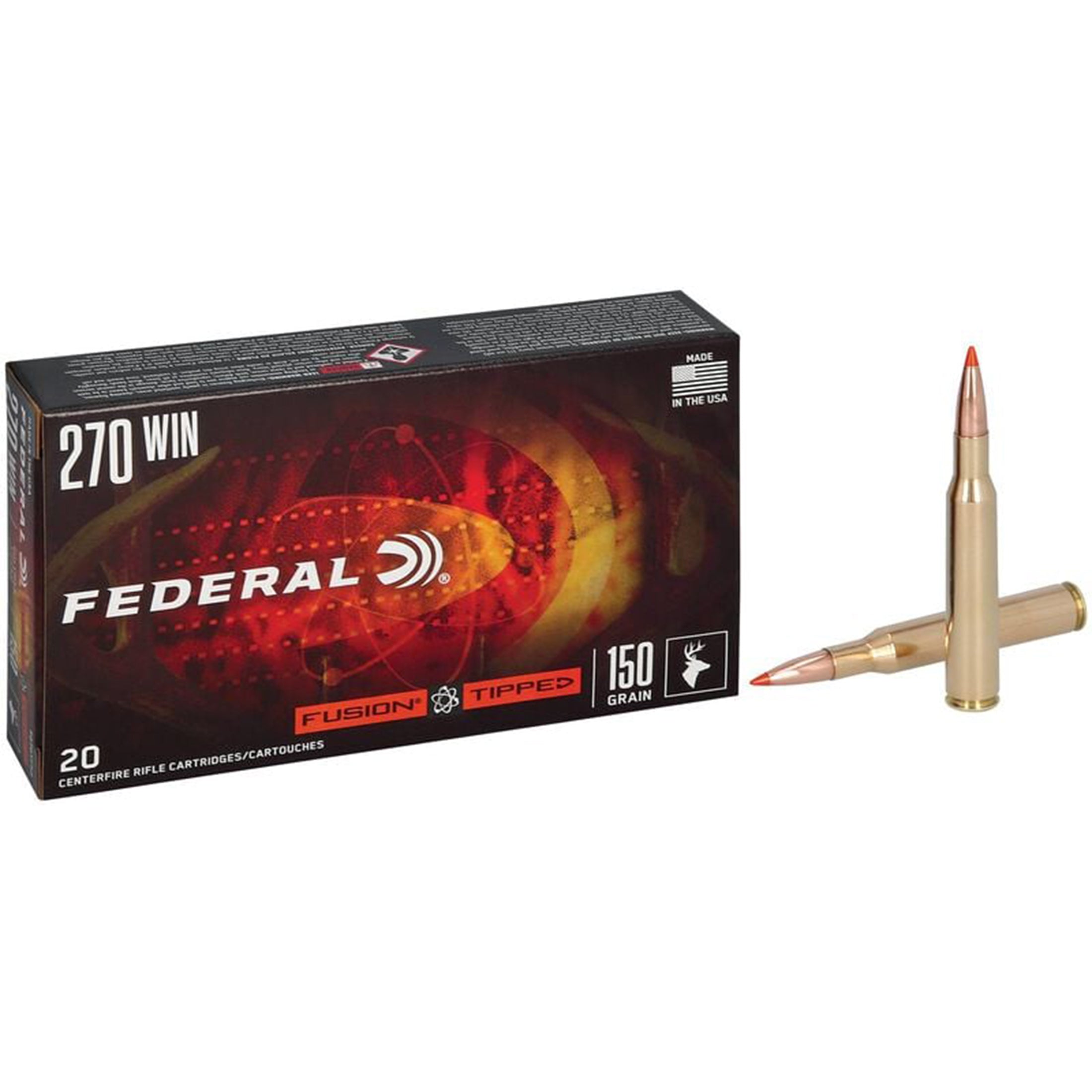

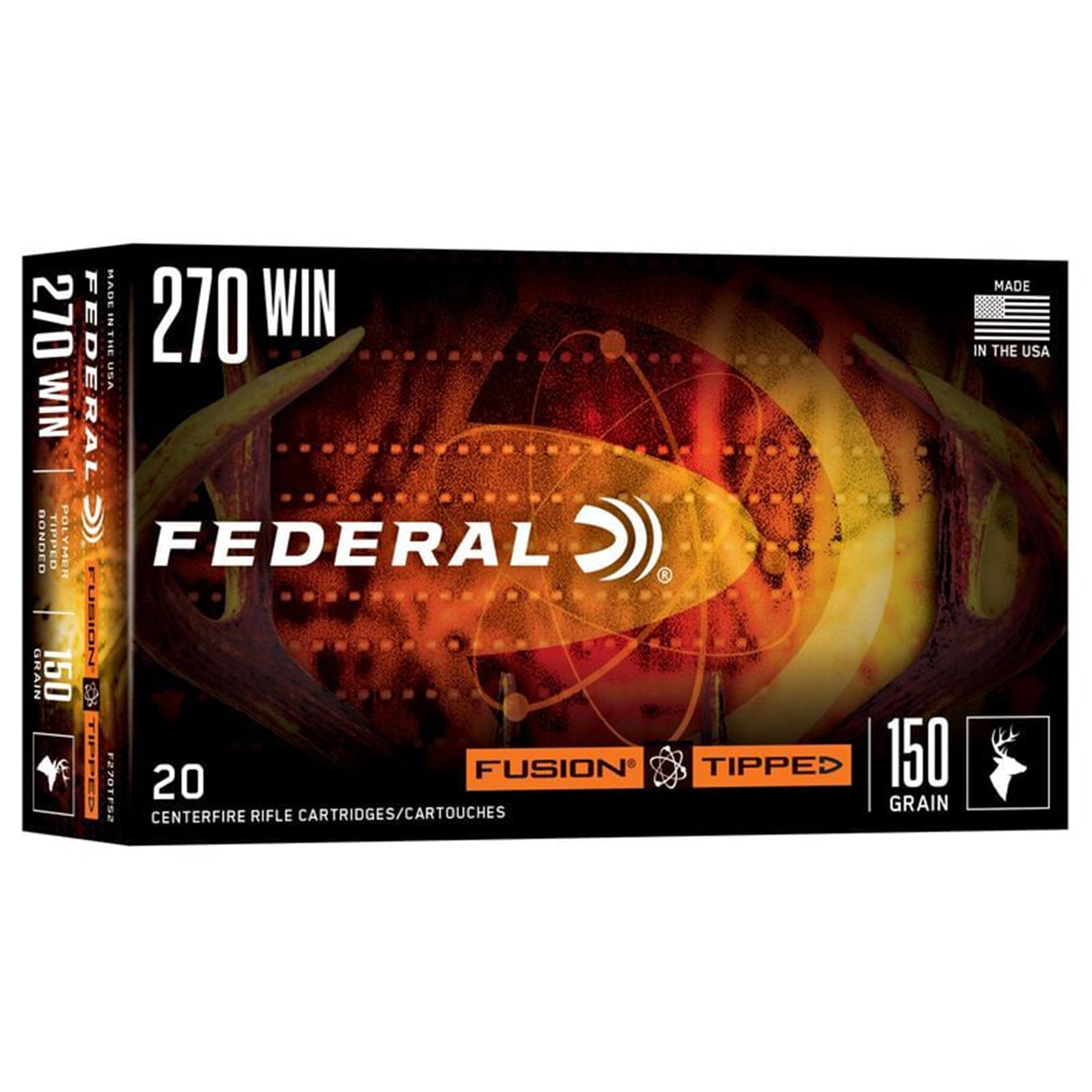

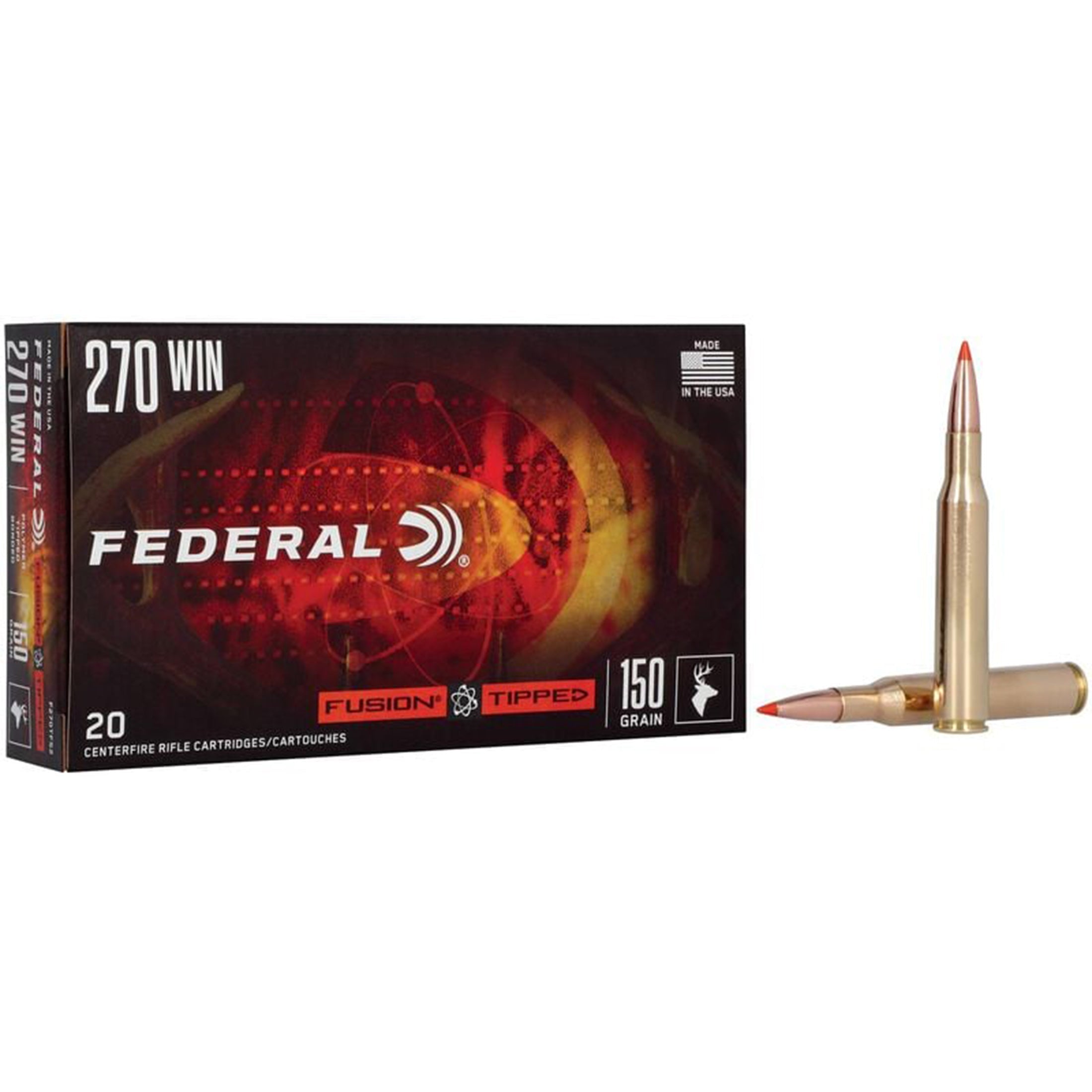

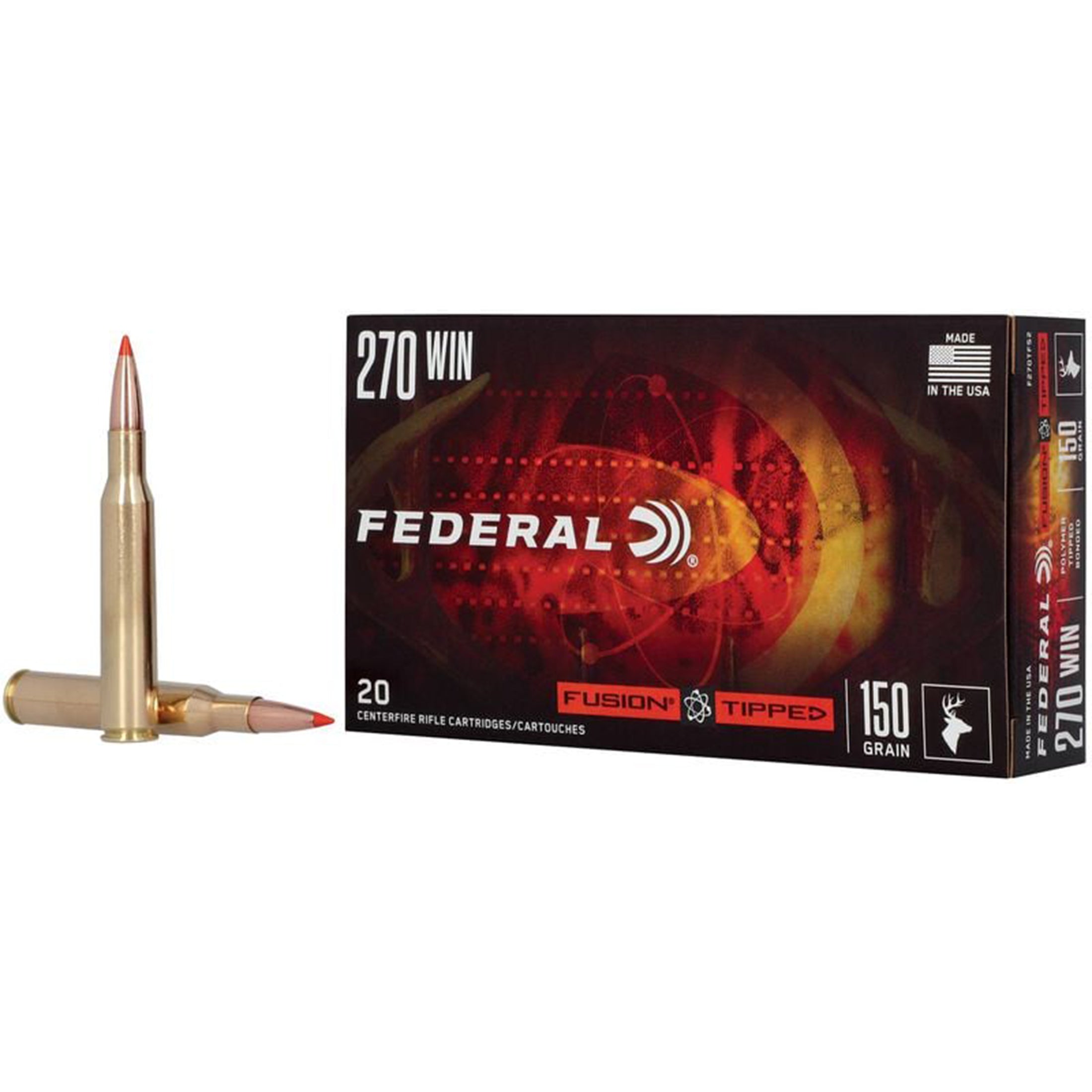

270 Win 150gr Tipped Fusion

From The World Leader In Ammunition, Federal Fusion became a legend in the deer woods for a reason. Its pressure-formed lead core is molecularly bonded to a consistent copper jacket, resulting in the highest weight retention, deepest penetration and best expansion in its class. We've written a new chapter to the Fusion story with Fusion Tipped. The design offers the same great terminal performance as the original, but with a polymer tip that increases ballistic coefficient, flattens trajectories and boosts energy for better accuracy and extended effective range.

• Polymer-tipped design

• Reduced wind drift and drop, as well as more energy downrange

• Polymer tip paired with skived nose cavity initiates consistent, lethal expansion.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket

• Excellent accuracy

• Maximum weight retention for deep penetration

Specs

Caliber
270 Win

Grain Weight
150

Bullet Style
Fusion Tipped

Muzzle Velocity
2850

Ballistic Coefficient
.495

Package Quantity
20

Usage
Big Game

Ballistics

•
Velocity

•
Energy

•
Wind Drift

•
Average Range

•
Long Range

Velocity in feet per second

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2850
2664
2486
2314
2150
1992

Energy in Foot Pounds

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2705
2364
2058
1784
1539
1322

Wind Drift in Inches (at 10 mph)

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

-0.0
0.7
2.7
6.1
11.3
18.4

Wind Drift in Inches (at 10 MPH Crosswind)

Average Range

50 Y
100 Y
200 Y
300 Y

-0.2

-3.4
-12.4

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.

Long Range

50 Y
100 Y
200 Y
300 Y
400 Y
500 Y

0.7
1.7

-7.3
-21.2
-42.6

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.
