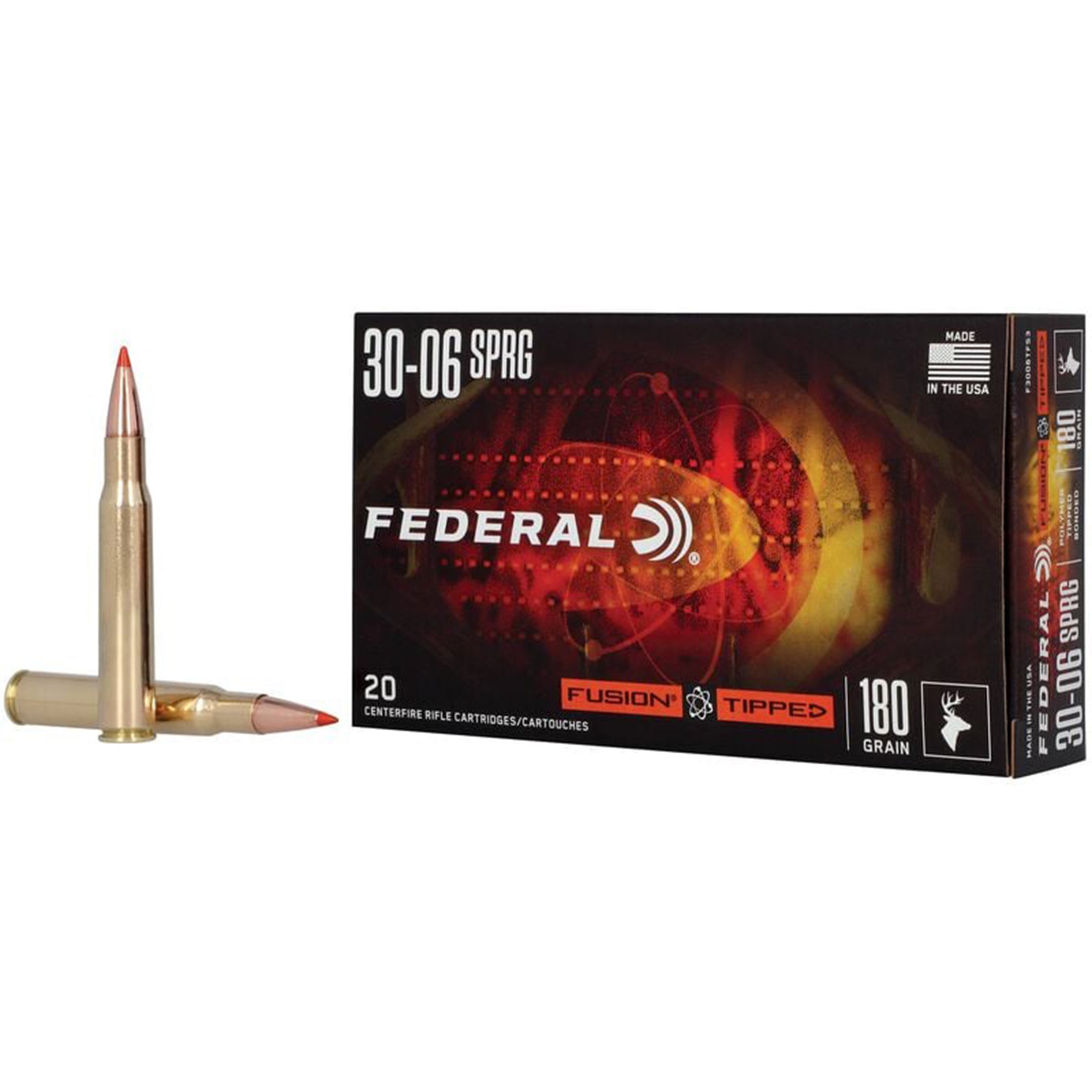

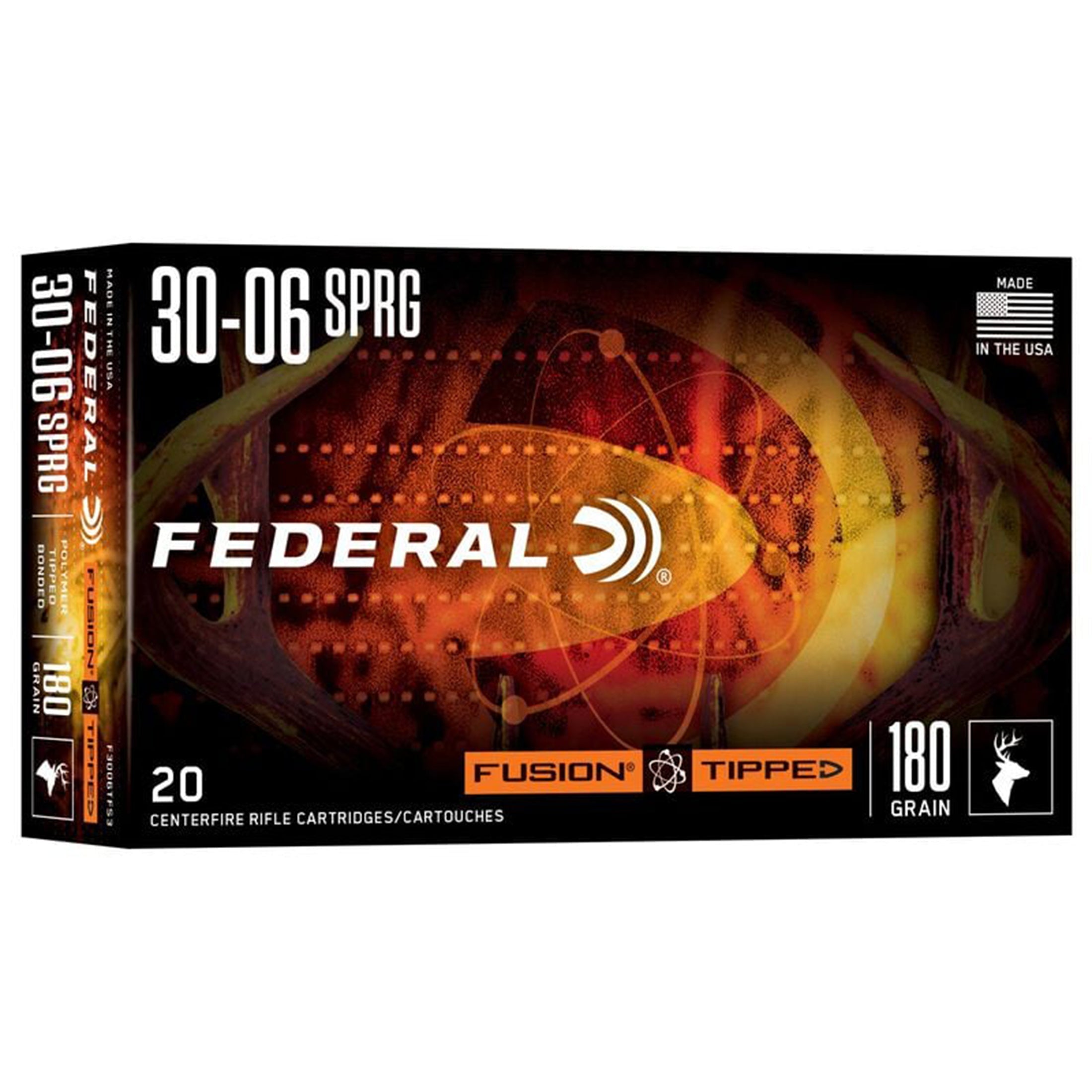

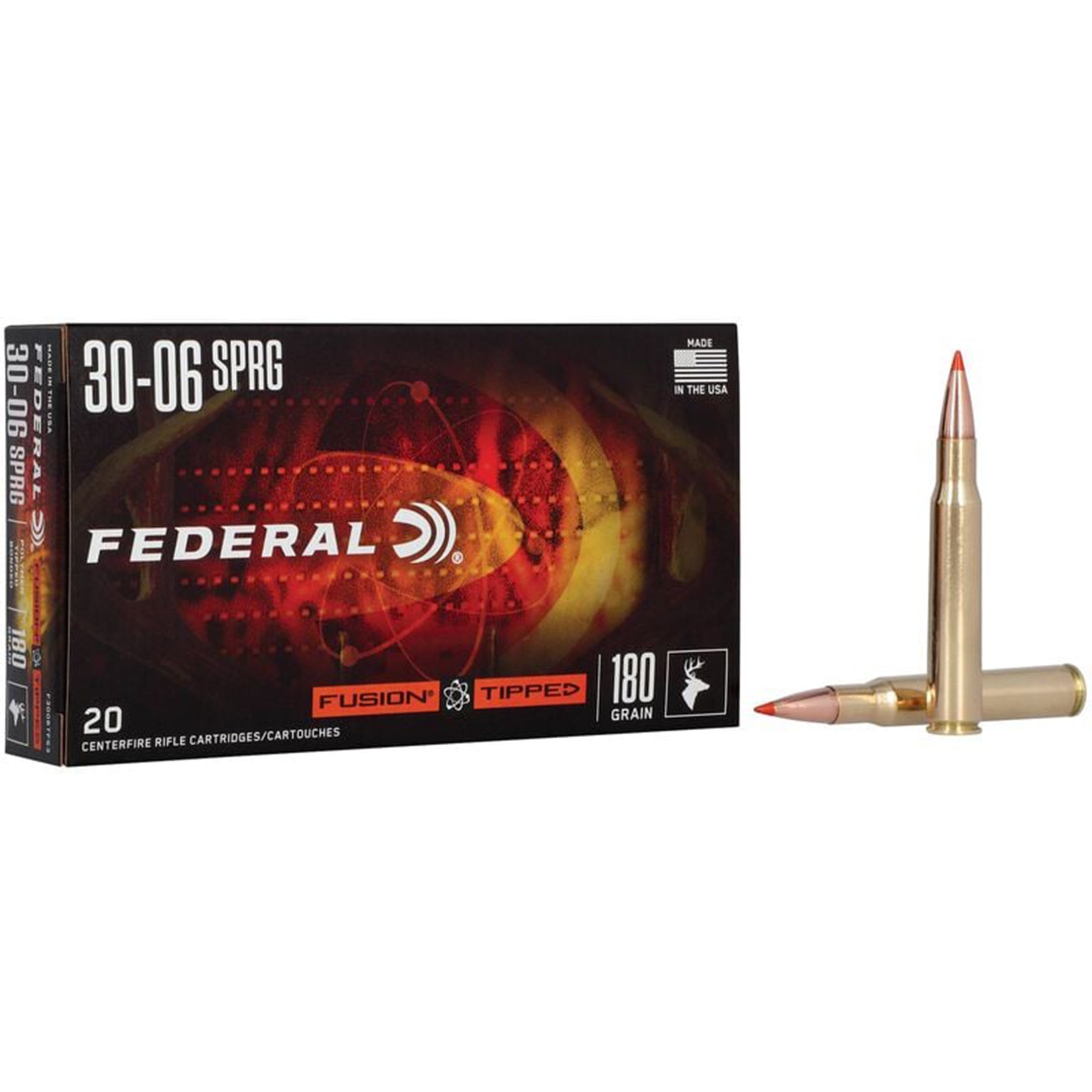

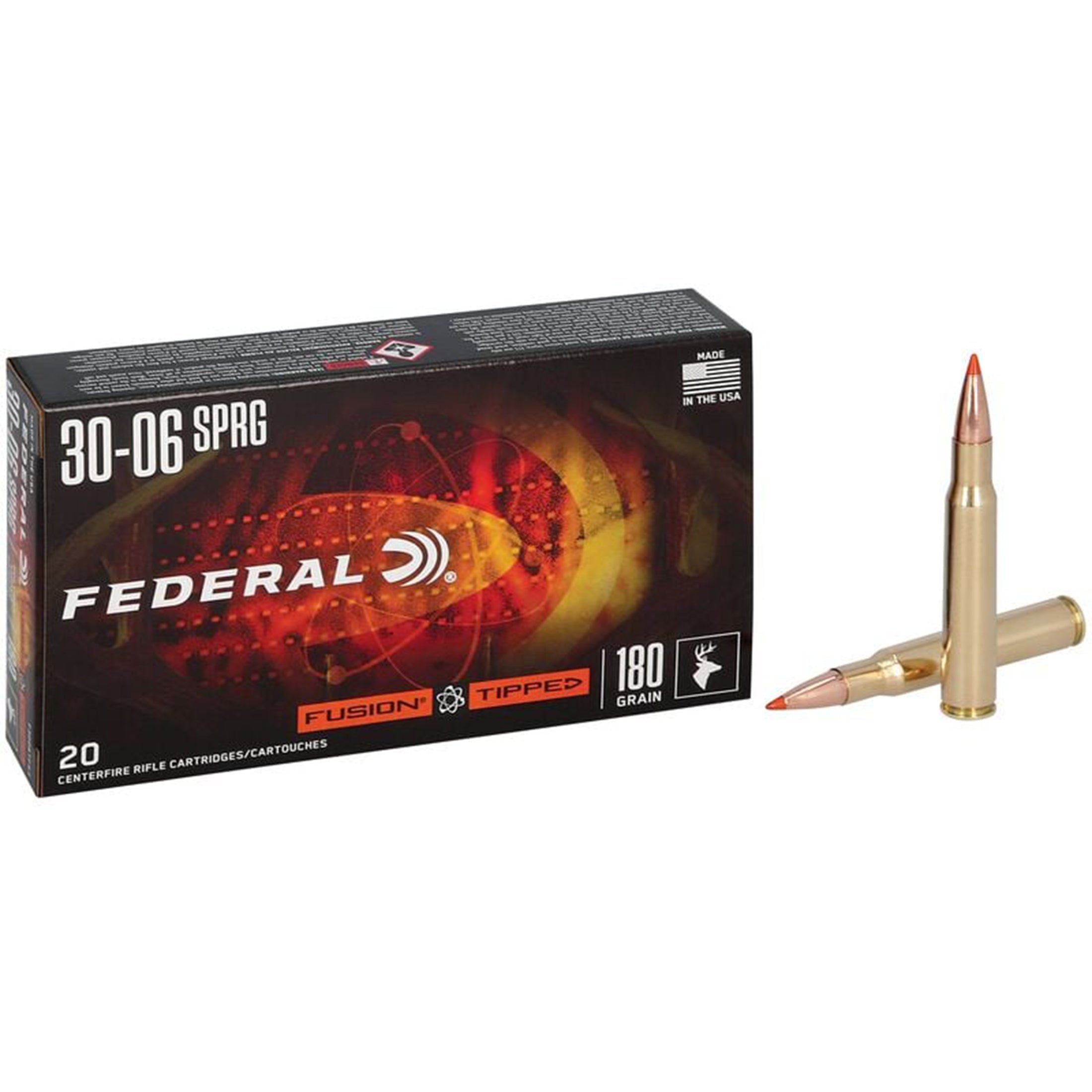

30-06 SPr 180gr Tipped Fusion

Product Overview

From The World Leader In Ammunition™, Federal® Fusion® became a legend in the deer woods for a reason. Its pressure-formed lead core is molecularly bonded to a consistent copper jacket, resulting in the highest weight retention, deepest penetration and best expansion in its class. We've written a new chapter to the Fusion story with Fusion Tipped. The design offers the same great terminal performance as the original, but with a polymer tip that increases ballistic coefficient, flattens trajectories and boosts energy for better accuracy and extended effective range.

• Polymer-tipped design

• Reduced wind drift and drop, as well as more energy downrange

• Polymer tip paired with skived nose cavity initiates consistent, lethal expansion.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket

• Excellent accuracy

• Maximum weight retention for deep penetration

Specs

Caliber
30-06 Springfield

Grain Weight
180

Bullet Style
Fusion Tipped

Muzzle Velocity
2725

Ballistic Coefficient
.501

Package Quantity
20

Usage
Big Game

Ballistics

•
Velocity

•
Energy

•
Wind Drift

•
Average Range

•
Long Range

Velocity in feet per second

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2725
2546
2375
2210
2051
1899

Energy in Foot Pounds

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2968
2591
2253
1951
1681
1441

Wind Drift in Inches (at 10 mph)

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

0
0.7
2.7
6.5
11.9
19.1

Wind Drift in Inches (at 10 MPH Crosswind)

Average Range

50 Y
100 Y
200 Y
300 Y

-0.1

-3.8
-13.9

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.

Long Range

50 Y
100 Y
200 Y
300 Y
400 Y
500 Y

0.8
1.9

-8.2
-23.4
-46.7

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.

Video

Downloads

• F3001_Small_Arms_Ammunition_SDS_NA
