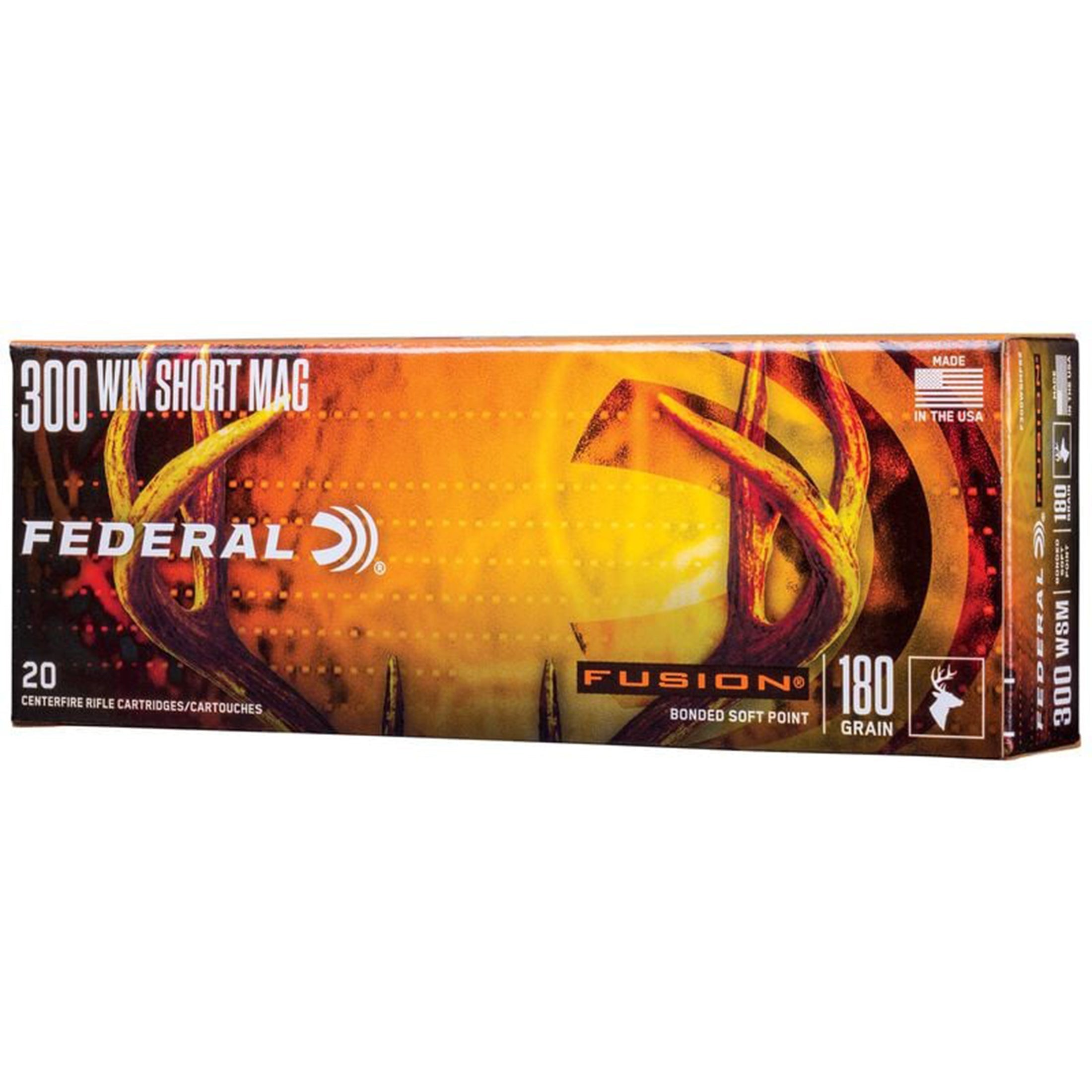

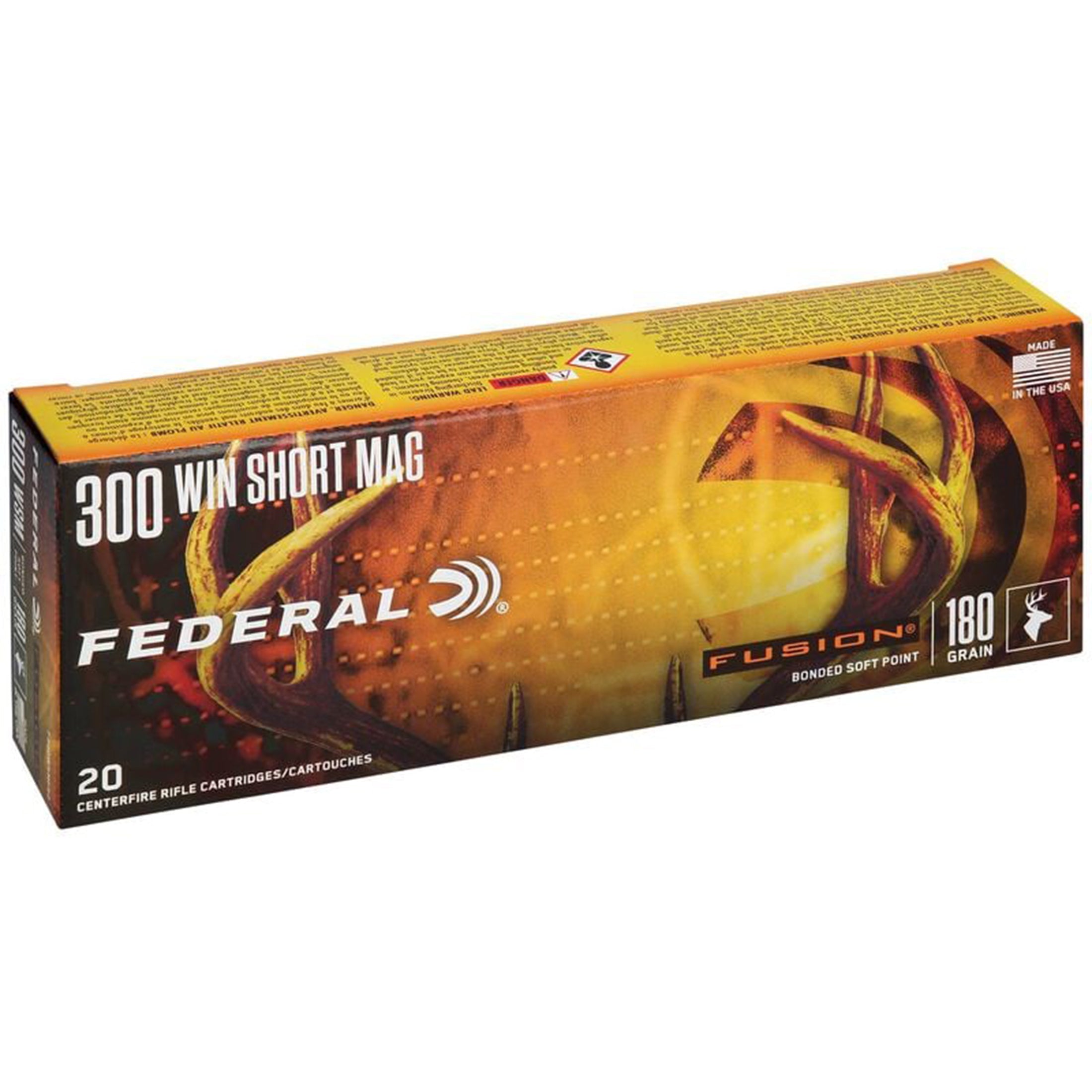

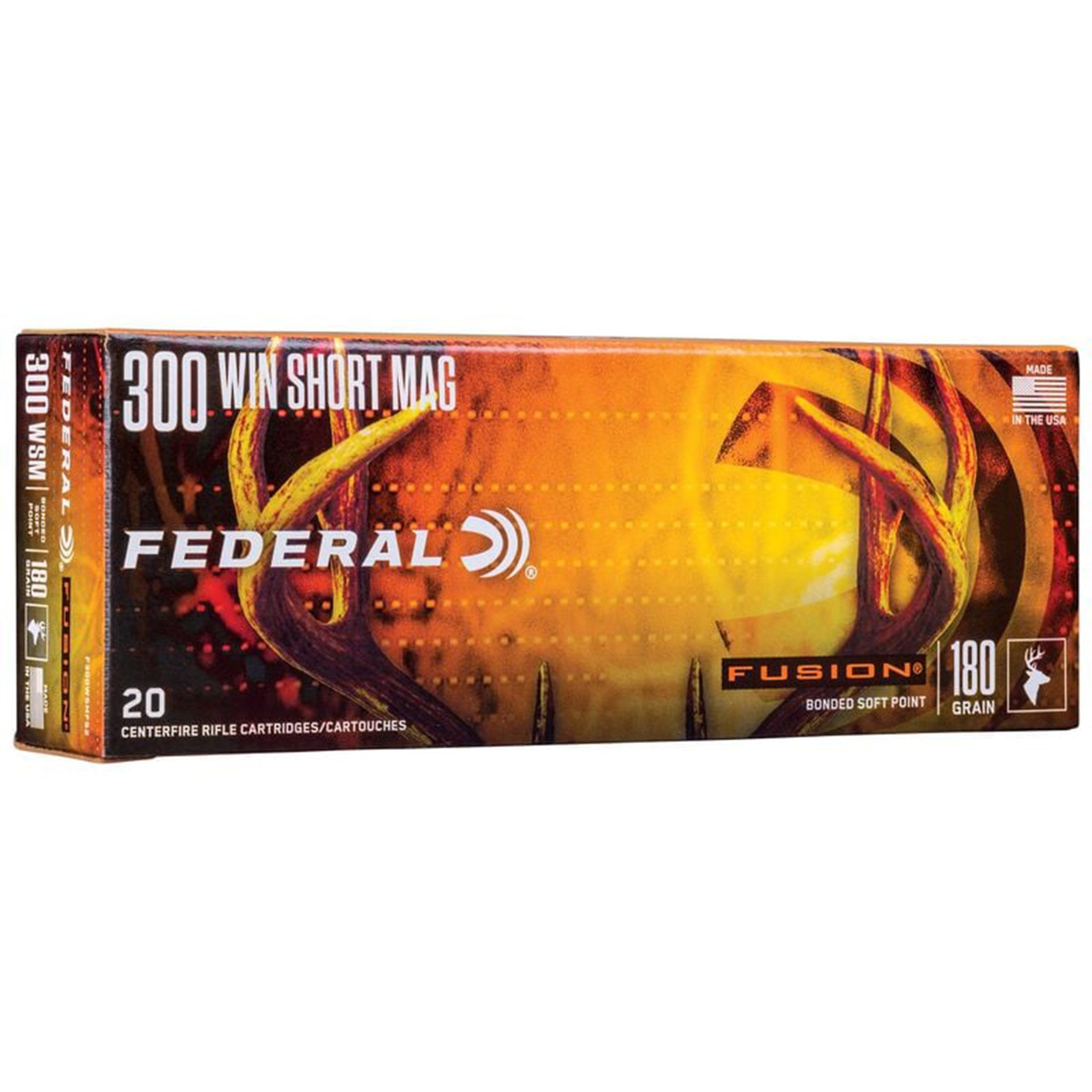

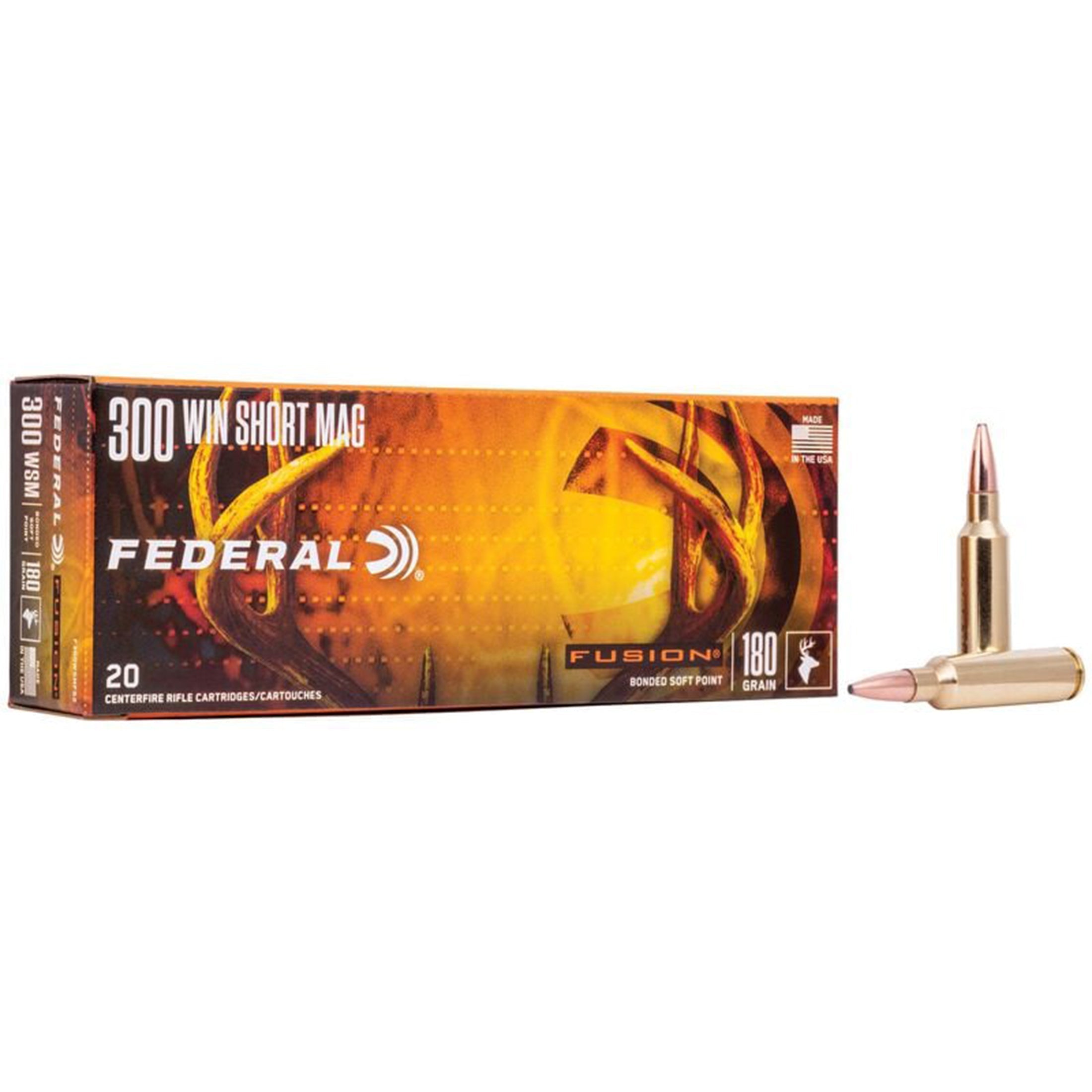

300 WSM 180gr Fusion

Fusion was the first rifle ammunition specifically built for deer hunting—and it's still the best, offering the largest expansion and highest weight retention in head-to-head comparisons against the competition. With a molecularly bonded jacket and a pressure-formed core, Fusion transfers maximum energy on target.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket

• Excellent accuracy

• Skived, pre-programmed nose provides consistent expansion

• Maximum weight retention for deep penetration

Specs

Caliber
300 WSM

Grain Weight
180

Bullet Style
Fusion Soft Point

Muzzle Velocity
2950

Ballistic Coefficient
.484

Bullet Length In
1.210in. / 30.73mm

Terminal Performance Minimum Velocity
1900

Package Quantity
20

Usage
Big Game, Long Range

Ballistics

•
Velocity

•
Energy

•
Wind Drift

•
Average Range

•
Long Range

Velocity in feet per second

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2950
2756
2570
2391
2220
2055

Energy in Foot Pounds

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

3478
3035
2639
2285
1969
1688

Wind Drift in Inches (at 10 mph)

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

0
0.6
2.6
5.9
11.0
17.9

Wind Drift in Inches (at 10 MPH Crosswind)

Average Range

50 Y
100 Y
200 Y
300 Y

-0.2

-3.1
-11.4

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.

Long Range

50 Y
100 Y
200 Y
300 Y
400 Y
500 Y

0.6
1.5

-6.8
-19.7
-39.7

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.
