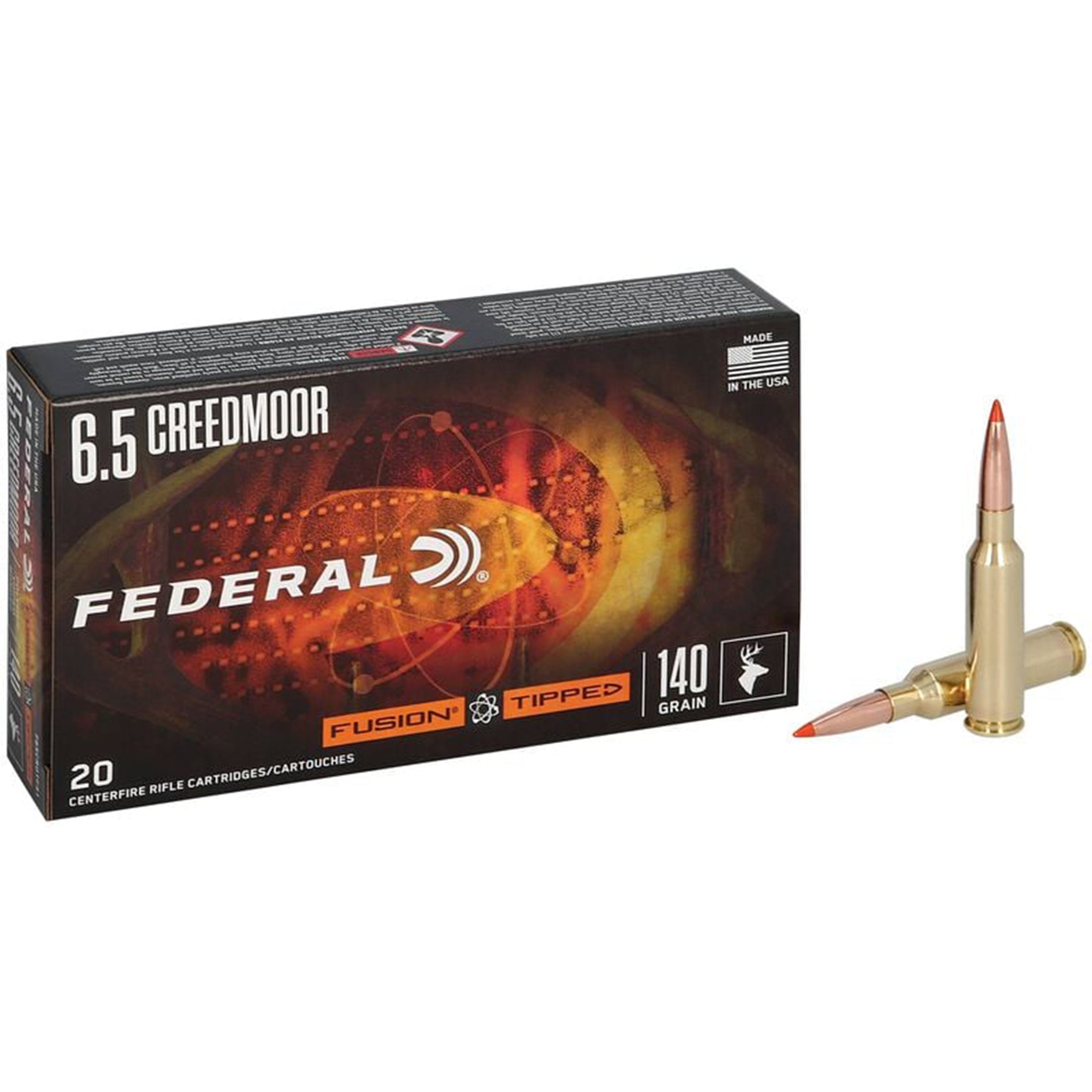

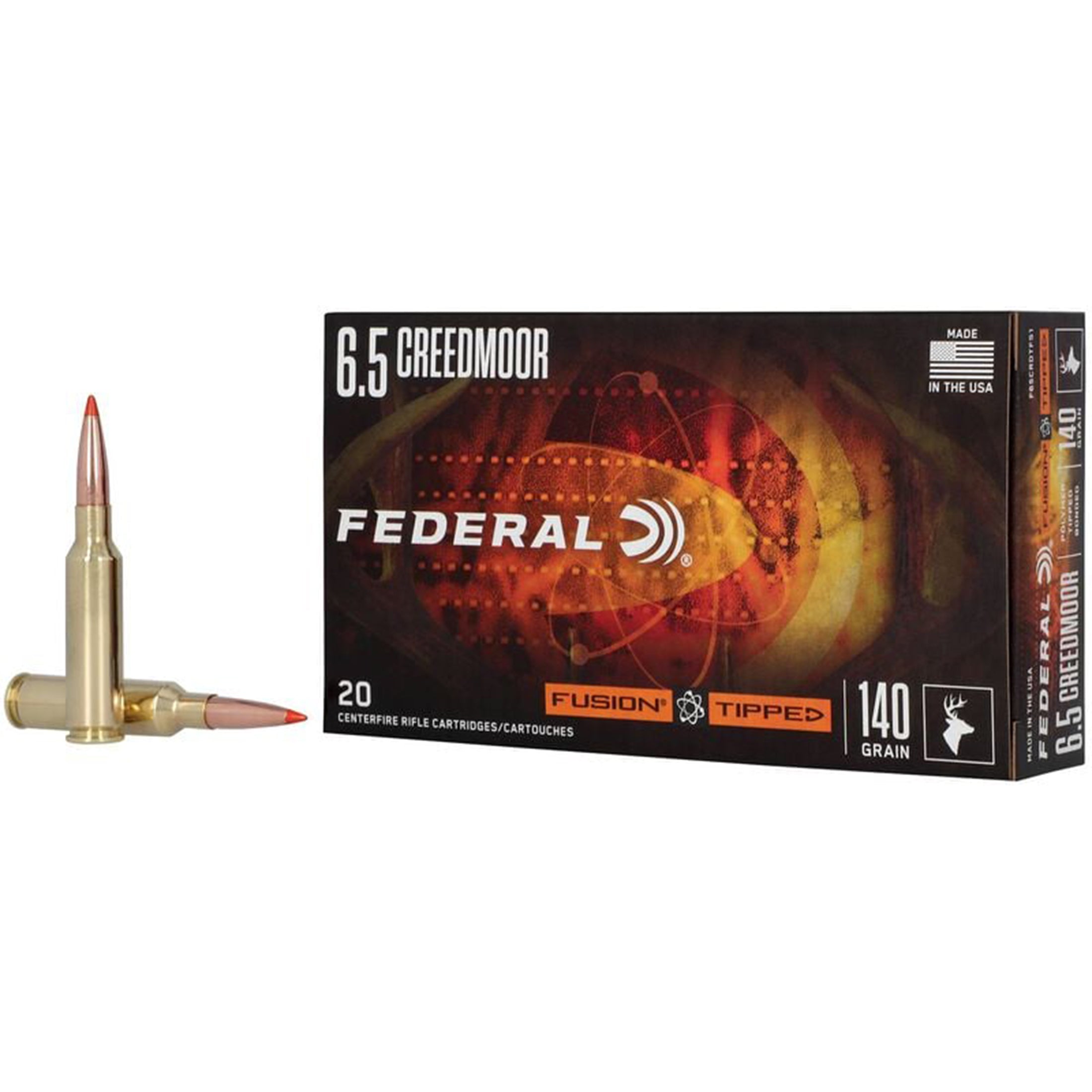

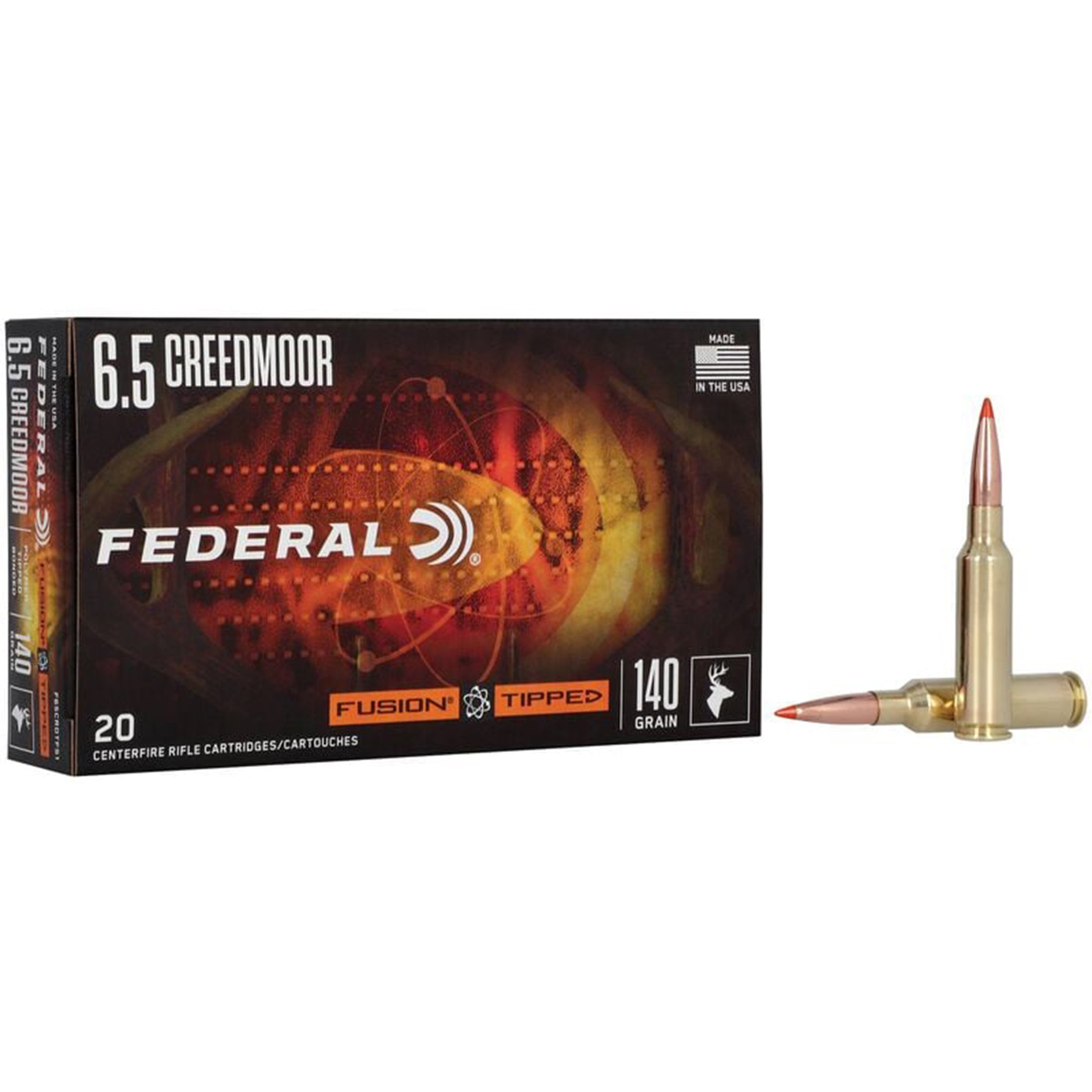

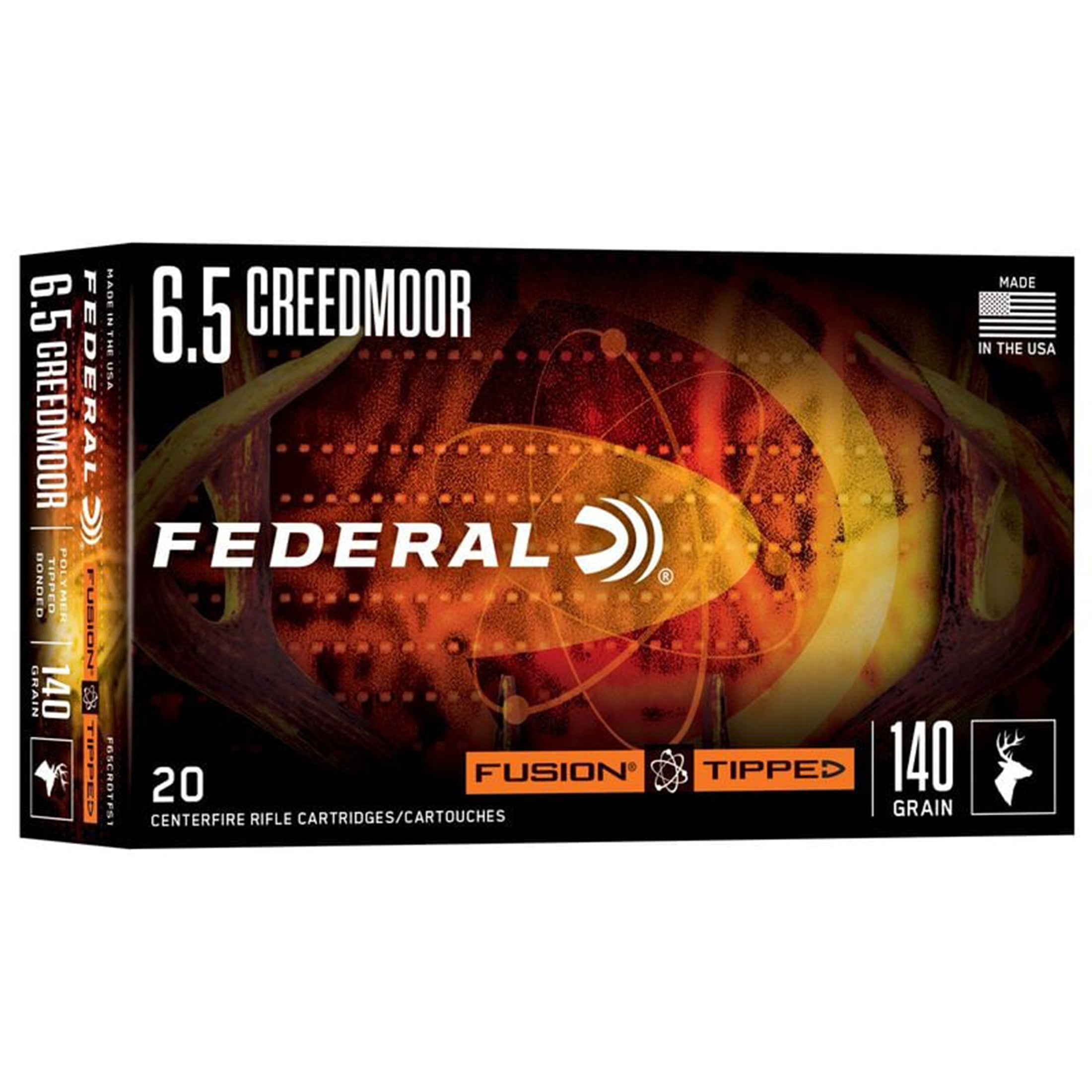

6.5 Creedmoor 140gr Tipped Fusion

From The World Leader In Ammunition, Federal Fusion became a legend in the deer woods for a reason. Its pressure-formed lead core is molecularly bonded to a consistent copper jacket, resulting in the highest weight retention, deepest penetration and best expansion in its class. We've written a new chapter to the Fusion story with Fusion Tipped. The design offers the same great terminal performance as the original, but with a polymer tip that increases ballistic coefficient, flattens trajectories and boosts energy for better accuracy and extended effective range.

• Polymer-tipped design

• Reduced wind drift and drop, as well as more energy downrange

• Polymer tip paired with skived nose cavity initiates consistent, lethal expansion.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket

• Excellent accuracy

• Maximum weight retention for deep penetration

Specs

Caliber
6.5 Creedmoor

Grain Weight
140

Bullet Style
Fusion Tipped

Muzzle Velocity
2715

Ballistic Coefficient
.529

Package Quantity
20

Usage
Big Game, Long Range

Ballistics

•
Velocity

•
Energy

•
Wind Drift

•
Average Range

•
Long Range

Velocity in feet per second

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2715
2546
2383
2226
2076
1930

Energy in Foot Pounds

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

2291
2015
1765
1541
1339
1158

Wind Drift in Inches (at 10 mph)

Muzzle
100 Y
200 Y
300 Y
400 Y
500 Y

0
0.6
2.5
6.1
11.3
18.0

Wind Drift in Inches (at 10 MPH Crosswind)

Average Range

50 Y
100 Y
200 Y
300 Y

-0.1

-3.8
-13.9

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.

Long Range

50 Y
100 Y
200 Y
300 Y
400 Y
500 Y

0.8
1.9

-8.1
-23.3
-46.2

Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.
